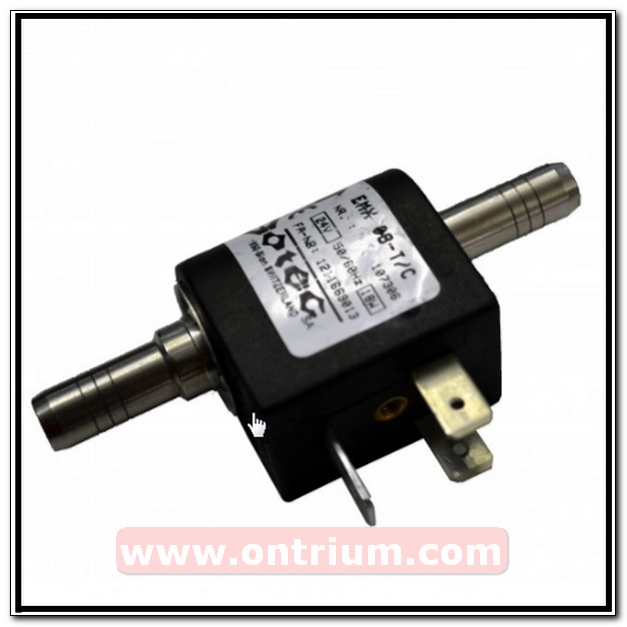

Gotec EMX08-T/C-24/50 (#106103) in GERMANY

     Model EMX08 oscillating piston pump is a great solution for low volume liquid pumping applications where small size is a critical factor. The piston size and the length of its displacement define the flow rate. The pressure limits itself automatically. The pump will run without damage when the liquid flow is stopped momentarily. Model EMX-08 is offered with two or three valves depending on the inlet suction required. The precision ground machined elements, piston and bushing,
guarantee minimum wear and exceptional component life. With only stainless steel and PTFE in contact with the media, the pumps are suitable for a wide range of fluids and applications.

Typical applications:

• Domestic & industrial appliances
• Household appliances
• Cleaning equipment
• Printing systems
• Lubrifi cation
• Laboratory & medical devices

Technical Specifications:

• Power consumption : 18 [W]
• Weight : ~ 95 [g]
• Section height : 0.5 [m]
• Flow max. : 12 [l/h]
• Pressure max. : 2.5 [bar]
• Dimension : 23 / 43 / 76 [mm]
• Electrical connection : Three terminals 6.3 / 0.8 [mm] DIN 43650
• Hydraulic connection : Ø 8 [mm] for soft tubing or quick connectors

Order Examples:

• EMX 08-T/C 12/50-2V
• EMX 08-T/C 24/50-2V
• EMX 08-T/C 110/50-2V
• EMX 08-T/C 230/50-2V
• EMX 08-T/C 12/60-2V
• EMX 08-T/C 24/60-2V
• EMX 08-T/C 110/60-2V
• EMX 08-T/C 230/60-2V
• EMX 08-T/C 12/50-3V
• EMX 08-T/C 24/50-3V
• EMX 08-T/C 110/50-3V
• EMX 08-T/C 230/50-3V
• EMX 08-T/C 12/60-3V
• EMX 08-T/C 24/60-3V
• EMX 08-T/C 110/60-3V
• EMX 08-T/C 230/60-3V
• EMX 08-T/N 12/50-2V
• EMX 08-T/N 24/50-2V
• EMX 08-T/N 110/50-2V
• EMX 08-T/N 230/50-2V
• EMX 08-T/N 12/60-2V
• EMX 08-T/N 24/60-2V
• EMX 08-T/N 110/60-2V
• EMX 08-T/N 230/60-2V
• EMX 08-T/N 12/50-3V
• EMX 08-T/N 24/50-3V
• EMX 08-T/N 110/50-3V
• EMX 08-T/N 230/50-3V
• EMX 08-T/N 12/60-3V
• EMX 08-T/N 24/60-3V
• EMX 08-T/N 110/60-3V
• EMX 08-T/N 230/60-3V

 Technical Data Pdf
