E.L.B Ex Gerate F353.B3 в БЪЛГАРИЯ

Марка: E.L.B Ex Gerate

Държава: България

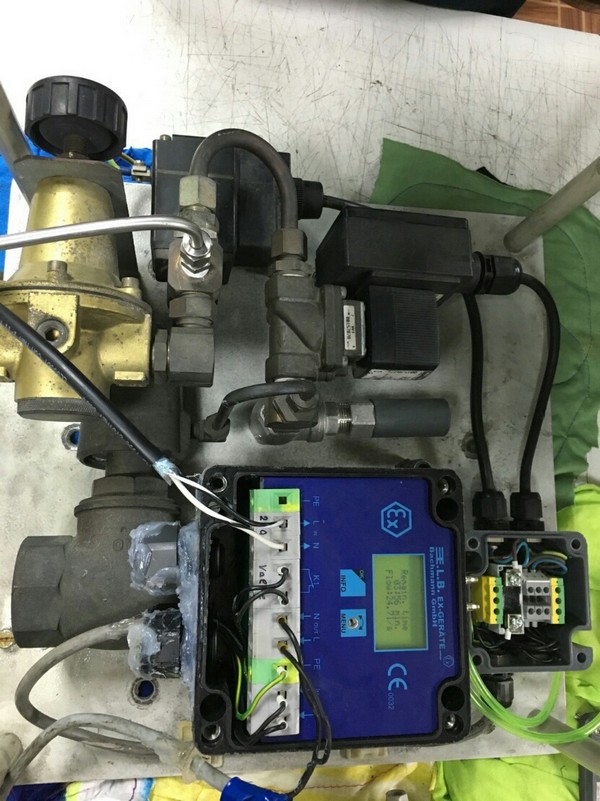

Описание : motor purge & pressurization system

Технически спецификации : ATEX II 2G Ex px IIC T4 Gb consist of : mounting (flange) plate with mounted components with hole arrangement according to your drawing / (drawing of flange plate according to old system with serial no. 1782 · Metal Cover made of 2mm coated sheet steel for mechanical and ingress protection of system · Adjustable purge volume: 0-90 Nm³/h , leakage compensation adjustable 0 – 15 Nm³/h · Multiprocessor control with 3 lines LC- Display for status / pressure values, settings etc. · Fully automatic controlled pre-purging sequence via ex digital valve · Electronic leakage compensation via Ex proportional controlled valve in redundancy with manual needle valve · Power supply 230 VAC +- 10% / 48-62 Hz · Supply pressure: min. 3,0 bars, max 25,0 bars · Test certificate with factory settings(the original settings needs to be restored from the old system e.g. purge time) · Dokumentation in Englisch language as PDF on CD

Състояние: Ново (неупотребявано)
