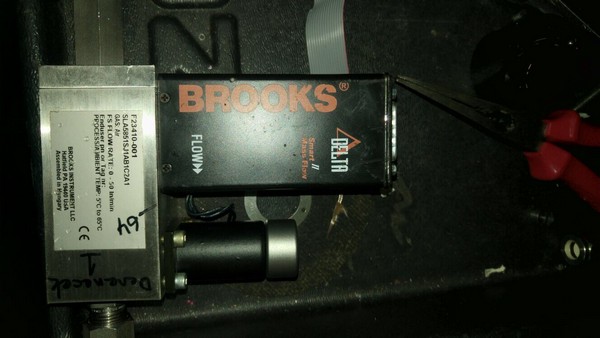

SLA5850S1JAB1C2A1 Brooks Instruments in DEUTSCHLAND

Marke: Brooks Instruments

Land: Deutschland

Technische Spezifikation : (Mass Flow Controller: Precision MFC featuring industry leading repeatability, fast response, ultra-low drift and self diagnostics Customer Part Number SL/A5851SJ1AB1C2A1N3 E1AA Revision Rev B Base Model SLA5850 Rev B Flow Controller Max Press 1500 psig [103 BAR] Max Temp 149F [65C] Body Material 316L SS Valve Type Normally closed Valve Seat Material Viton Seals / O-Ring Viton o-ring Electrical Connector 15-pin D-Conn Connection Size 10mm Connection Type Comp FS Flow Rate 50 NLPM Fluid / Gas NITROGEN N2 Flow Type SV Inlet Pressure 7 bar a Outlet Pressure 3.5 bar a Cal Ref Temp 0'C Communications Smart Emulation Input Signal 4-20mA Output Signal 4-20mA Electrical Conn. - Digital Smart Emulation (Analog and/or RS485) REV-B Baud Rate 19200 baud Standard Rate Output Enhancement Standard settling / response time Power Supply 24 Vdc Certification None (safe area use) Mounting Attitude (1) Horizontal base down Calibration Single standard calibration up to 200 PSIG OEM Standard Brooks label Orifice 0.062 orifice Restrictor Size code 5 Restrictor Type ACLFE / Wiremesh Customer Tag Requirements No Tags Operating Temp 20 C Sensor Factor 1)

Zustand: Neu (Unbenutzt)
