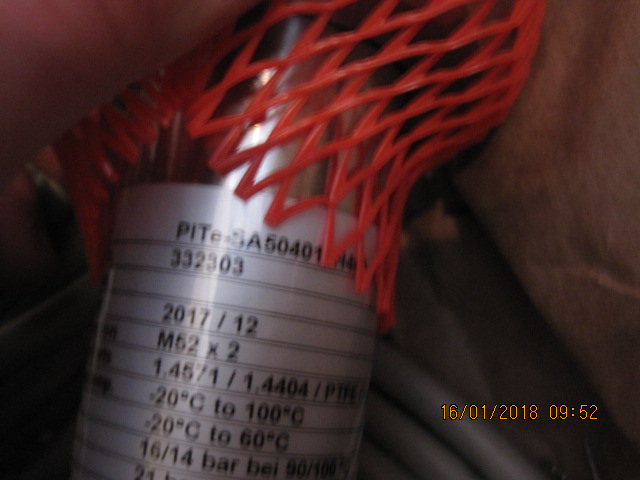

Heinrichs PITe-SA504013H400-X-H/UMF2-F11G0BH in BULGARIA

Brand: Heinrichs

Country: Bulgaria

Description : Magnetisch-induktives Durchflußmeßgerät

Technical specification : Model-Code Sensor : PITe-SA504013H400-X-H Model-Code Umformer : UMF2-F11G0BH Item No. : 70014186 operation Measuring Principle: Uniform field with alternating polarity Prozessbedingngen Display range [m3 / h]: 0-2500 inc. to DN300 (ISO tube) *) Measured material: water Density [kg / m3]: 1000 Process temperature [° C]: 20 Process pressure [pe bar]: max. 16 bar Flow direction: - sensor data Wetted parts: 1.4571 / 1.4404 / PTFE for DN80-DN400 / ASME 3 "-16" Screw version: injector adapter Q40mm with M52x2 Coupling nut with anti-twist device Pressure resistance: 16 bar (at maximum 90 ° C) 14 bar (at a maximum of 100 ° C) Sensor length "T": 138.5 mm Electrode Material: Hastelloy Earthing electrode: without Transmitter arrangement: separately Protection class: IP65 (EN60529), cable PVC Protection class: IP65 (EN60529), cable PVC Approval: without Fluid temperature limit: -20 ° C to 100 ° C Flow: 10 x DN Follow-up distance: 5 x DN Umformerdaten Mounting type: Separate transmitter with 10 m cable, power outlet and Degree of protection: IP65 connection on the converter Housing: aluminum, lacquered Threaded cable gland : M20x1.5 Approval: without Display: LCD, 2-line, backlit 6 keys for parameter setting Display language : Power supply: 230V AC (± 10%), 50/60 Hz Current output: 0 / 4-20 mA Analog output: active, galvanically isolated 1 x 4-20 mA with HART Binary output: passive, galvanically isolated 1 x pulse output, max. 1 kHz 1x status output (for example, empty pipe override) Ambient temperature: -20 to 60 ° C Measurement accuracy: Q> 30% FS: +/- 1.5% of the measured value Q <30% FS: +/- 1.5% of the measured value +/- 2.5% of full scale Conductivity min. : 20 μS / cm (with empty tube section)

Condition: New (Unused)
