Ultra Pompe S.r.l. PGLG--10VVV----GG--M4-80A in BULGARIA
Get the best sales prices in BULGARIA for Ultra Pompe S.r.l. PGLG--10VVV----GG--M4-80A from Impexron Ltd.
Product: PGLG--10VVV----GG--M4-80A
Brand: Ultra Pompe S.r.l.
Country: Bulgaria

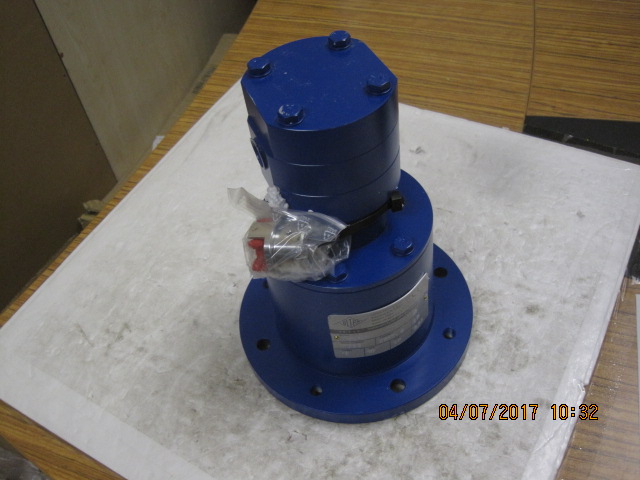

Description : gear pump
Technical specification : GL 10 V with lantern and coupling
G series gear pump
Main body: Cast iron G25

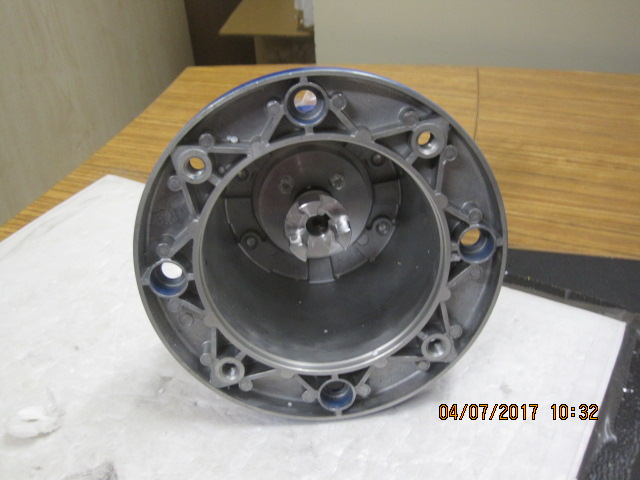

B5 lantern mounting
Complete of lantern and coupling (no drive)
Displacement 10 cc/rev
Mechanical seal: stainless steel/carbon graphite/FPM
External lip seal: FPM
Gasket: FPM
Rotors: Steel 39NiCrMo3 Nitriding process
Bearings: steel/PTFE
To be coupled to electric motor 0,55 KW 4 Poles B3/B5
230/400/50 Hz Ie2 Class F 80A
Rated speed: 1400 rpm
Theoric rated delivery (1 bar, 220 cSt): 14 l/min
Design pressure: 30 bar
Operating pressure and viscosity limited by motor
power
Operating pressure: 10 bar
Operating viscosity: 100 cst
Operating temperature: -10...+40°C
Pump duty code: 84136031
Spare parts duty code: 84139100
Country of origin: ITALY
Condition: New (Unused)
Impexron Ltd. is here to help you with procurement of PGLG--10VVV----GG--M4-80A gear pump and other products and spare parts of Ultra Pompe S.r.l..
Contact us to get an assistance from an expert for sales prices for Ultra Pompe S.r.l. - PGLG--10VVV----GG--M4-80A gear pump in Bulgaria.
Using the products of Ultra Pompe S.r.l. will minimize your costs on spare parts.
We know time is expensive, so let us find the best prices for spare parts and components for you.
We're not an official distributor of Ultra Pompe S.r.l., yet we are importing it on reasonable prices.
Our company gives competitive pricing for Ultra Pompe S.r.l. - PGLG--10VVV----GG--M4-80A gear pump in Bulgaria.
Our company delivers more thаn 1 million spare parts to customers from all over the world.
Contact us by e-mail or complete our RFQ form online.
Our company is not an authorized distributor or representative for this brand. We are a reseller company for this brand.
Other products from Ultra Pompe S.r.l.
GEAR PUMP GL-35-VB – 1,5KW 4P
- Description: Pump with lantern, coupling and drive
Electric motor 1,5 Kw 4 Poles B3/B5 90L 400/50- 480/60
Cast Iron Pump
Rotation CW
Internal safety valve
FPM sealing elements.
Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM
Displacement: 35 cc/rev Rated speed: 1400 rpm Theoric delivery:
at 1 bar
49 l/min
Max. Temperature: --°c Max. Pressure: -- bar Viscosity range: -- cSt
GEAR PUMP GL-35-VBS – 1,5KW 4P
Description: Pump with lantern, coupling and drive
Electric motor 1,5 Kw 4 Poles B3/B5 90L 400/50- 480/60
Cast Iron Pump
Rotation CCW
Internal safety valve
FPM sealing elements.
Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM
Displacement: 35 cc/rev Rated speed: 1400 rpm Theoric delivery: 49 l/min
at 1 bar
Max. Temperature: --°c Max. Pressure: -- bar Viscosity range: -- cSt
GEAR PUMP GL-42– 1,1KW 6P
Pump with lantern, coupling and drive
Electric motor 1,1 Kw 6 Poles B3/B5 400/50- 480/60 90L
Cast Iron Pump
Internal safety valve
FPM sealing elements.
Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM, Displacement: 42 cc/rev Rated speed: 900 rpm Theoric delivery:
at 1 bar -220 cSt
37 l/min
Max. Temperature: --°c Max. Pressure: 10 bar
GEAR PUMP GL-42– 3KW 4P
Pump with lantern, coupling and drive
Electric motor 3 Kw 4 Poles B3/B5 400/50- 480/60 100L
Cast Iron Pump
Internal safety valve
FPM sealing elements.
Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM
Displacement: 42 cc/rev
Max. Temperature: --°c
Rated speed: 1400 rpm
Max. Pressure: -- bar
Theoric delivery:
at 1 bar
59 l/min
Viscosity range: -- cSt
GEAR PUMP GL-52-VB – 1,5KW 8P
Pump with lantern, coupling and drive Electric motor 1,5 Kw 8 Poles B3/B5 400/50- 480/60 112M Cast Iron Pump Internal safety valve FPM sealing elements. Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM, Displacement: 52 cc/rev Rated speed: 700 rpm Theoric delivery: at 1 bar -220 cSt 36 l/min Max. Temperature: --°c Max. Pressure: 10 bar
GEAR PUMP GL-93-VB – 4KW 4P
Pump with lantern, coupling and drive
Electric motor 4 Kw 4 Poles B3/B5 400/50- 480/60 112M
Cast Iron Pump
Internal safety valve
FPM sealing elements.
Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM
Displacement: 93 cc/rev
Max. Temperature: --°c
Rated speed: 1400 rpm
Max. Pressure: -- bar
Theoric delivery:
at 1 bar
130 l/min
Viscosity range: -- cSt
GL 144 V B
PUMP TYPE: GEAR, DISCHARGE PRESSURE: 10 BAR, DIRECTION OF ROTATION CLOCKWISE WHEN VIEWED FROM MOTOR DRIVE END, APPLICATION: FOR COLD SHEAR LUBRICATION, RM-5
GL 144 VB
pump with lantern and coupling
GL-14-VBS
Gear pump
GL-28-VB + 1,5KW 4P
Gear pump
GL-28-VBS + 1,5KW 4P
Gear pump
PGLM---7VVVE---GG--M6-71B
gear pump
LF 21 B
Gear pump
LF 28 AB
Gear pump
LF10B.
Q:0.87m3/h P:10bar 1100rpm 0.5kw
LF21B.
Q:1.8m3/h P:10bar 710rpm 0.75kw
LF44B Q:3.8
Original Spare Part
LF93B Q:120
Original Spare Part
SL-14-V-WNGear pump with lantern (no coupling, no drive)
Original Spare Part
24602
gear pump NMFH 14 Tag NO 8P-105
