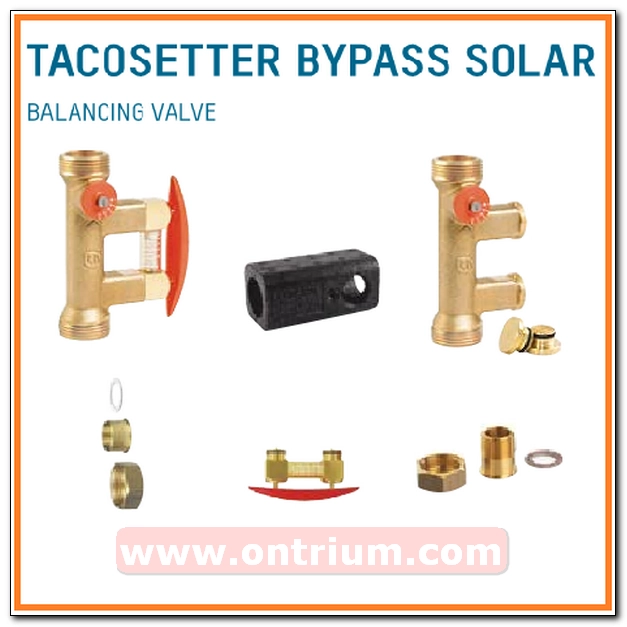

TacoSetter Bypass Solar

Direct hydraulic balancing and control of flows to consumers or in a subsystem. TacoSetter Bypass Solar 130 balancing valves offer an easy and accurate method of adjusting the flow rates for heating-, ventilation-, air conditioning- and cooling systems.
Correct balancing of hydraulic circuits ensures optimum energy distribution, resulting in more efficient and economical operation in accordance with the energy saving regulations provided for by legislation.

With TacoSetter Bypass Solar 130 balancing valves, any qualified fitter can set the appropriate flow rate using the unique flow measurement device, avoiding investments in training and costly measuring devices.

There is a separate diagram for TacoSetter up to DN25 and its flow ranges with nine correction curves for use of anti-frost and anticorrosion agents. Corrections are not required for larger dimensions as the deviation lies within the measuring tolerance

Products

TacoSetter Bypass Solar 130 - Balancing valve with female thread Brass

223.2380.000
223.2381.000
223.2482.000

TacoSetter Bypass Solar 130 - Balancing valve with male thread Brass

223.2380.350
223.2381.350
223.2482.350

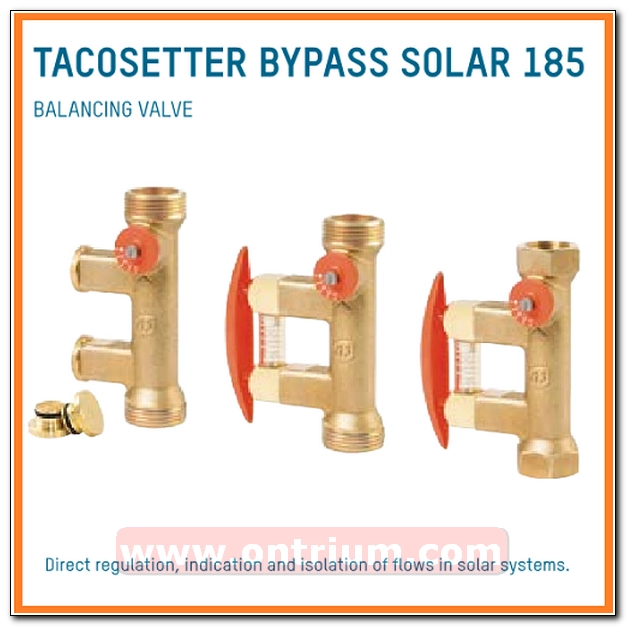

TacoSetter Bypass Solar 185 - Balancing valve with male thread Brass

223.2382.385
223.2383.385

TacoSetter Bypass Solar 185 - Balancing valve with female thread Brass

223.2382.000
223.2383.000
223.2480.000
223.2580.000

ACCESSORIES:

INSULATION BOX

Order No:

296.2321.004
296.2322.004

SYSTEM SCREW CONNECTION FITS TO TACOSETTER BYPASS

Screw connection with male thread R (conical) as per DIN 2999

Order No:

210.6630.000
210.6631.000
210.6632.000
210.6633.000

Screw connection with solder connection

210.5331.019

210.5332.019

210.5334.003

SIGHT GLASS (COMPLETE) AND SEAL

Order no:

298.2333.020
298.2334.020
298.2335.020
298.2342.020
298.2343.020
298.2352.020
298.2362.020
298.2382.020
