Ultra Pompe S.r.l. GL 72 VB in TURKEY
Get the best sales prices in TURKEY for Ultra Pompe S.r.l. GL 72 VB from Ontrium.

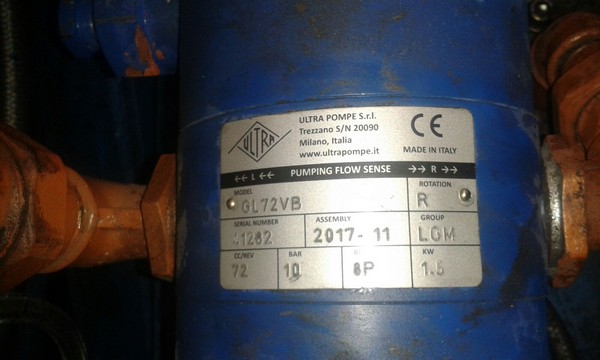

Product: GL 72 VB
Brand: Ultra Pompe S.r.l.
Country: Turkey
Description : Gear pump
Technical specification : cod. PGLG--72VVVB---GG--M8112M
with lantern and coupling G series gear pump
Main body: Cast iron G25
B5 lantern mounting
Complete of lantern and coupling (no drive)
Displacement 72 cc/rev
Mechanical seal: stainless steel/carbon
graphite/FPM
External lip seal: FPM
Gasket: FPM
Standard safety relief valve installed (oriented for right
CW rotation)
Rotors: Steel 39NiCrMo3 Nitriding process
Bearings: steel/PTFE
To be coupled to electric motor 1,5 KW 8 Poles B3/B5
230/400/50Hz IP55 class F 112M
Rated speed: 700 rpm
Theoric rated delivery (1 bar, 220 cSt): 50,4 l/min
Design pressure: 30 bar
Operating pressure and viscosity limited by motor
power
Operating pressure: 10 bar
Operating viscosity: 100 cst
Operating temperature: -10...+40°C
Condition: New (Unused)
We supply high quality GL 72 VB products for your new projects or which you may use to recover your broken equipment.
Get help from our experts for sales prices for products of Ultra Pompe S.r.l. - GL 72 VB Gear pump in Turkey.Minimize your expenses with the high quality products of Ultra Pompe S.r.l..Get the best spare parts prices from a single source, don't waste time seeking for different suppliers when you can just go with one.Our company is not a representative of Ultra Pompe S.r.l., but we are selling their products at good prices.Grab the best offer for Ultra Pompe S.r.l. - GL 72 VB Gear pump in Turkey.Don’t hesitate to become one of our customers, you will not regret it!Send us your inquiry by e-mail or fill out our online contact form.Our company is not an authorized distributor or representative for this brand. We are a reseller company for this brand.
Other products from Ultra Pompe S.r.l.
GEAR PUMP GL-35-VB – 1,5KW 4P
- Description: Pump with lantern, coupling and drive
Electric motor 1,5 Kw 4 Poles B3/B5 90L 400/50- 480/60
Cast Iron Pump
Rotation CW
Internal safety valve
FPM sealing elements.
Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM
Displacement: 35 cc/rev Rated speed: 1400 rpm Theoric delivery:
at 1 bar
49 l/min
Max. Temperature: --°c Max. Pressure: -- bar Viscosity range: -- cSt
GEAR PUMP GL-35-VBS – 1,5KW 4P
Description: Pump with lantern, coupling and drive
Electric motor 1,5 Kw 4 Poles B3/B5 90L 400/50- 480/60
Cast Iron Pump
Rotation CCW
Internal safety valve
FPM sealing elements.
Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM
Displacement: 35 cc/rev Rated speed: 1400 rpm Theoric delivery: 49 l/min
at 1 bar
Max. Temperature: --°c Max. Pressure: -- bar Viscosity range: -- cSt
GEAR PUMP GL-42– 1,1KW 6P
Pump with lantern, coupling and drive
Electric motor 1,1 Kw 6 Poles B3/B5 400/50- 480/60 90L
Cast Iron Pump
Internal safety valve
FPM sealing elements.
Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM, Displacement: 42 cc/rev Rated speed: 900 rpm Theoric delivery:
at 1 bar -220 cSt
37 l/min
Max. Temperature: --°c Max. Pressure: 10 bar
GEAR PUMP GL-42– 3KW 4P
Pump with lantern, coupling and drive
Electric motor 3 Kw 4 Poles B3/B5 400/50- 480/60 100L
Cast Iron Pump
Internal safety valve
FPM sealing elements.
Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM
Displacement: 42 cc/rev
Max. Temperature: --°c
Rated speed: 1400 rpm
Max. Pressure: -- bar
Theoric delivery:
at 1 bar
59 l/min
Viscosity range: -- cSt
GEAR PUMP GL-52-VB – 1,5KW 8P
Pump with lantern, coupling and drive Electric motor 1,5 Kw 8 Poles B3/B5 400/50- 480/60 112M Cast Iron Pump Internal safety valve FPM sealing elements. Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM, Displacement: 52 cc/rev Rated speed: 700 rpm Theoric delivery: at 1 bar -220 cSt 36 l/min Max. Temperature: --°c Max. Pressure: 10 bar
GEAR PUMP GL-93-VB – 4KW 4P
Pump with lantern, coupling and drive
Electric motor 4 Kw 4 Poles B3/B5 400/50- 480/60 112M
Cast Iron Pump
Internal safety valve
FPM sealing elements.
Mech. seal made of Stainless Steel – Carbon Graphite –FPM + lip seal FPM
Displacement: 93 cc/rev
Max. Temperature: --°c
Rated speed: 1400 rpm
Max. Pressure: -- bar
Theoric delivery:
at 1 bar
130 l/min
Viscosity range: -- cSt
GL 144 V B
PUMP TYPE: GEAR, DISCHARGE PRESSURE: 10 BAR, DIRECTION OF ROTATION CLOCKWISE WHEN VIEWED FROM MOTOR DRIVE END, APPLICATION: FOR COLD SHEAR LUBRICATION, RM-5
GL 144 VB
pump with lantern and coupling
GL-14-VBS
Gear pump
GL-28-VB + 1,5KW 4P
Gear pump
GL-28-VBS + 1,5KW 4P
Gear pump
PGLM---7VVVE---GG--M6-71B
gear pump
LF 21 B
Gear pump
LF 28 AB
Gear pump
LF10B.
Q:0.87m3/h P:10bar 1100rpm 0.5kw
LF21B.
Q:1.8m3/h P:10bar 710rpm 0.75kw
LF44B Q:3.8
Original Spare Part
LF93B Q:120
Original Spare Part
SL-14-V-WNGear pump with lantern (no coupling, no drive)
Original Spare Part
24602
gear pump NMFH 14 Tag NO 8P-105
